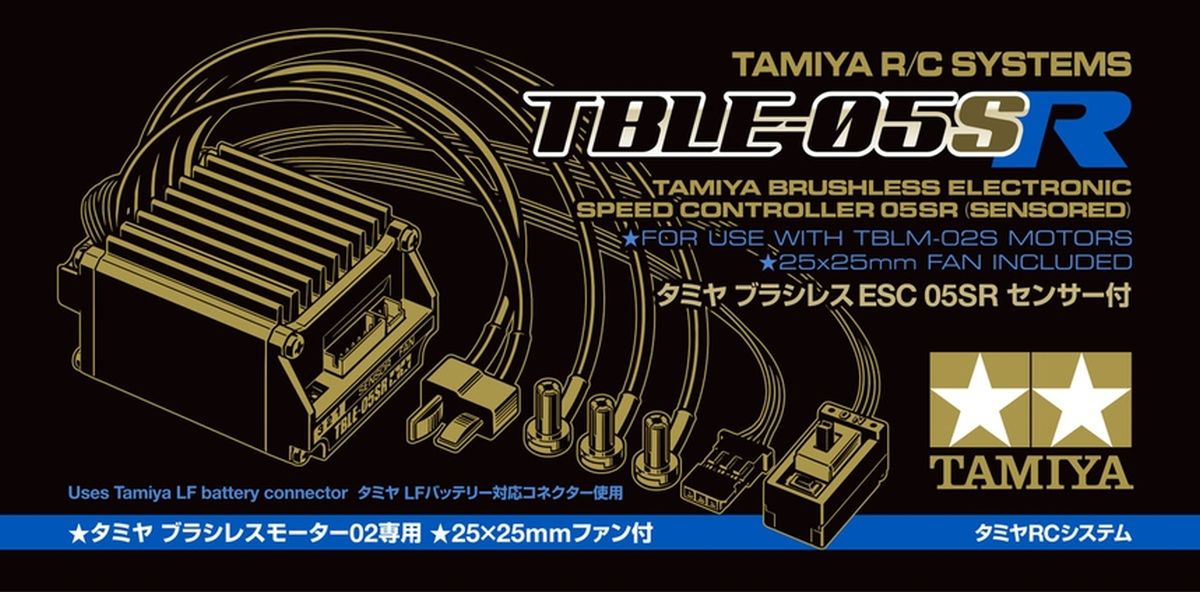

Tamiya Brushless Electronic Speed Controller 05SR (Sensored)
Tamiya Brushless Esc 05Sr
-
Description
This ESC is designed only for use with Tamiya
Brushless Motors (Sensored).• Dedicated brushless motor connectors
enable more efficient power supply.
• Motor connectors can be directly
connected to motor.
• The FET (Field Effect Transistor) layout
features parallelization to reinforce high
current resistance.
• The maximum-RPM is the same level as the
TBLE-04SR.
• The black-anodized aluminum case works
as heat sink to ensure improved heat
dissipation, and 25mm square cooling fan can be
attached. (*The TBLE-04SR had plastic case.)
• Features a receiver switch with
screw-attached switch case which protects cables
and reinforces case rigidity.
• The TBLE-05SR has a set button on the
switch for easier setup changes while the
TBLE-04SR had it on the ESC.
• Settings such as battery cut-off,
reverse, brake, soft start and neutral brake
can be changed by the set button and can be
checked by three LED lights and sounds.
• Features overheat and overload
protection functions to help ensure that your
equipment avoids damage.
• Compatible with Item 54612 Tamiya
Brushless Motor 02 (Sensored) 15.5T.
• Includes 270mm sensor cable.
• Maximum continuous current: 90A
• Input voltage: 6.6V – 7.2V
• Weight: 76g (including cables)
• Dimensions (approximate): 42.5 x 33.5 x
24.5mm (with fan: 42.5 x 33.5 x 33.5 mm)
