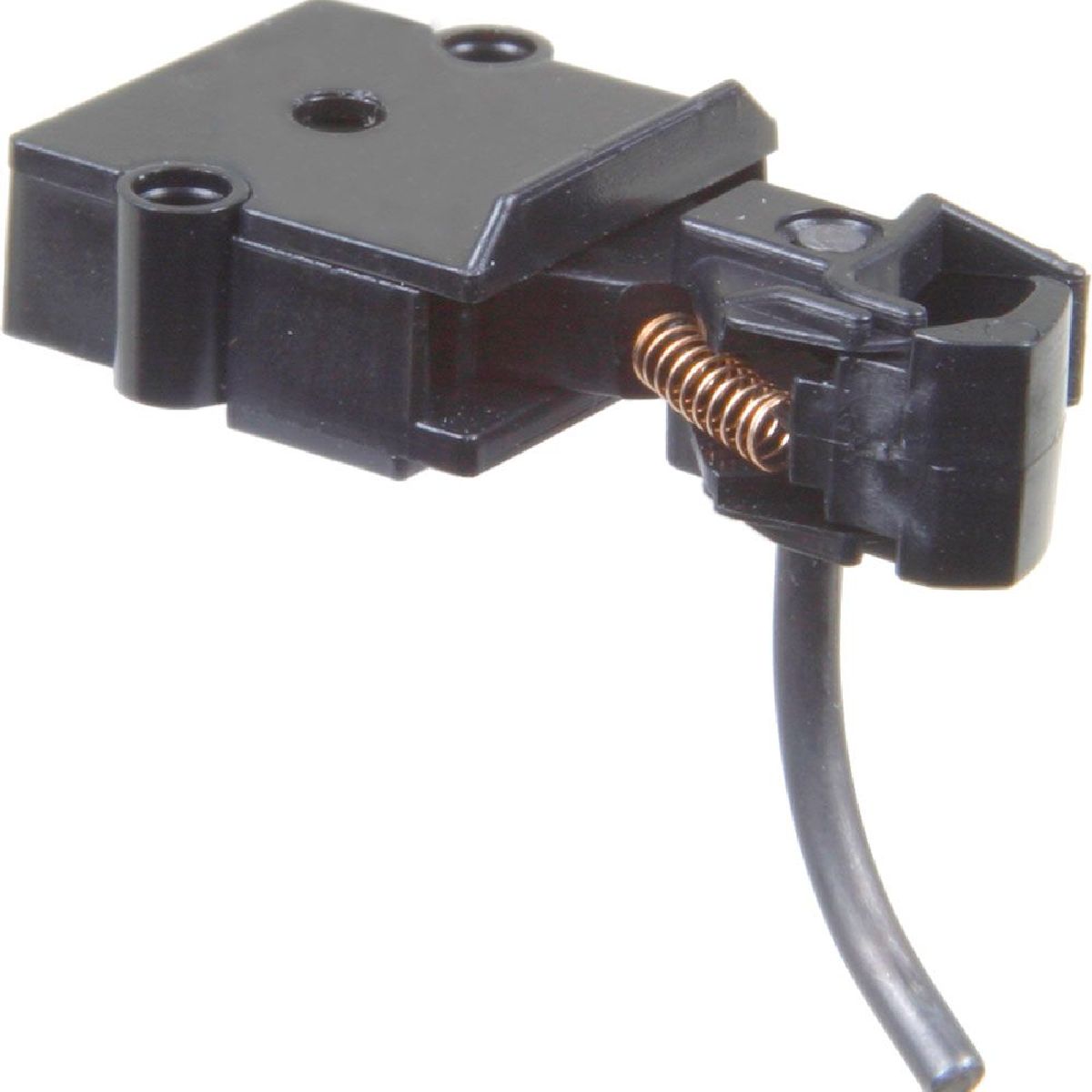

O Short Centerset Shank Metal Coupler/1pr.

One pair per package

UPC: 765484008064

Made in the U.S.A.

O-Scale

• Simple Drop in Design
• Trouble Free Operation
• Compatible with All Kadee® O-Scale Couplers
• World-Renowned Quality & Performance
• They just Last & Last & Last…

Package Includes:

• (2) Each #806 Original Style Plastic Couplers – Short Centerset Shank
• (2) Each Short Plastic Gearboxes & lids (#806 type)
• (3) Each #850 O Scale Centering Springs

Material – Plastic Shank Length – Short (47/64″) (Knuckle pulling face to center hole of Draft Gearbox) Coupler Offset – Centerset Centering Spring – #850 O Scale Centering Springs Knuckle Spring – #845 O Scale Knuckle Springs Head – Original Style Head Works In Place of – #743 O Scale Short Centerset Shank Couplers Works With – #806 type Draft Gearboxes

Material – Plastic Dimensions – 17/32″L x 1/2″W x 7/32″H Works With – #743, & #806 Couplers

Mounting Height – 25/32″ Centerline – 1 1/16″ Trip Pin Height – 1/16″ Mounting Holes – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Recommended Tools:

• #812 O Scale Coupler Height Gauge
• #231 Greas-em Dry Graphite Lubricant
• #237 Coupler Trip Pin Pliers
• #240 Double Headed Pin Vise
• #241 Dual Tool Manual Uncoupling Tool and Spring Pick
• #246 Tap (2-56) and Drills (#50 and #43)
