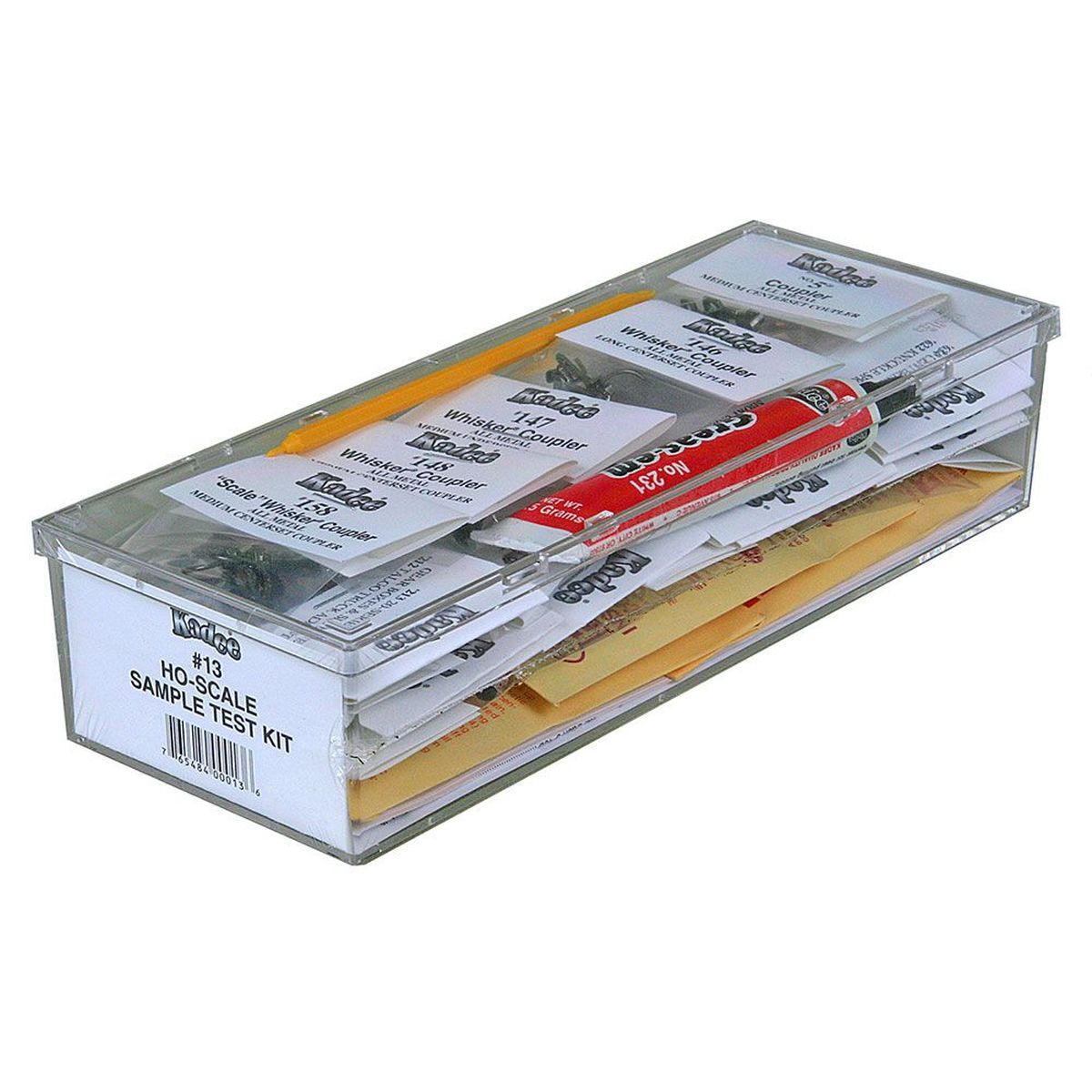

HO Coupler Test Kit

The sample test kit contains a variety of sample couplers and other
necessary components to identify and properly install Kadee®
couplers on locomotives & rolling stock. Without having to
purchase full size packages of Couplers, Gear Boxes & Adaptors,
Springs, Washers, & Shims that may be necessary for the Coupler
Conversions.

Contains: HO-Scale Conversion list, 20 & 30 Series
Instructions, Whisker Coupler Instructions & sample size
packages of products listed below.

Couplers – Metal
NO.5® Medium Centerset – Metal – One Pair
141 Whisker® Long Underset – Metal – One Pair
142 Whisker® Medium Overset – Metal – One Pair
143 Whisker® Short Centerset – Metal – One Pair
144 Whisker® Short Underset – Metal – One Pair
145 Whisker® Short Overset – Metal – One Pair
146 Whisker® Long Centerset – Metal – One Pair
147 Whisker® Medium Underset – Metal – One Pair
148 Whisker® Medium Centerset – Metal – One Pair
149 Whisker® Long Overset – Metal – One Pair
158 Whisker® “Scale” Medium Centerset – Metal – One Pair

Couplers – Plastic
21/31 Long Underset – Plastic – One Pair
22/32 Medium Overset – Plastic – One Pair
23/33 Short Centerset – Plastic – One Pair
24/34 Short Underset – Plastic – One Pair
25/35 Short Overset – Plastic – One Pair
26/36 Long Centerset – Plastic – One Pair
27/37 Medium Underset – Plastic – One Pair
28/38 Medium Centerset – Plastic – One Pair
29/39 Long Overset – Plastic – One Pair

Gear Boxes & Adaptors
212 Talgo Truck Adaptors: – One Sprue
Work with all Couplers included in Test Kit and are standard with
20-Series couplers.
213 20-Series Gear Box with Sleeves: – One Sprue
Work with all Couplers included in Test Kit and are standard with
20-Series couplers.
232 NO.5® Type Gear Box: – One Sprue
Work with all Couplers included in Test Kit and are standard with
NO.5® couplers & 20-Series couplers.
233 30-Series Gear Box: – One Sprue
Work with all Couplers included in Test Kit Except Whisker®
Couplers and are standard with 30-Series couplers.
234 Short NO.5® Type Gear Box: – One Sprue
Work with all Couplers included in Test Kit and are standard with short
shank 20-Series & 40-Series couplers.
242 Whisker® Snap-Together Gear Box: – One Sprue
Work with all Couplers included in Test Kit and are standard with
Whisker® couplers.
252 Small Whisker® Snap-Together Gear Box: – One Sprue
Work with Only Whisker® Couplers. The 252 is the
Whisker® equivalent to the 30-Series Gear Box.

Screws, Springs, Washers, & Shims
208 .015″ Red Fiber Washer – 10 Each
209 .010″ Gray Fiber Washer – 10 Each
211 .010″ & .015″ Shims – 10 Each
256 Plastic 2-56 x 1/2″ Screws – 10 Each
621 30-Series Torsion Spring – 10 Each
622 Knuckle Springs – 10 Each
634 NO.5® Type Centering Spring – 10 Each

Uncouplers
321 Code 100 Between-The-Rails – One Pair
322 Code 83 Between-The-Rails – One Pair

Tools
231 Greas-em – One Each
206 Coupler Height Gauge – One Each
241 Dual Tool – One Each
