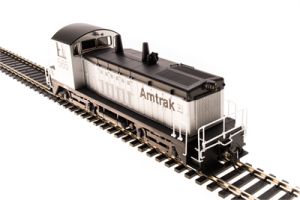

HO SW1200 Diesel Amtrak #567/DC/DCC Sound
A BRIEF HISTORICAL OVERVIEW
OF THIS MODEL
After WWII,
dieselization began in earnest, and EMD’s switchers dominated the
market. EMD built 888 of their NW2 model. Each was
equipped with a 1000 hp, V12 567-A engine. Broadway Limited Imports has
modeled the NW2 Phase V in a variety of road names that are described
below. These models are accurate HO scale replicas of the
real NW2’s, and come equipped with our new state-of-the-art sound
system – Paragon2. The Paragon2 sound and control system allows you to
operate your model in DC or DCC out-of-the-box. With the
Paragon2 sound and control system, the switcher offers authentic NW2
switcher sounds, and provides the operator with excellent slow-speed
control unrivaled in the industry today. Along with authentic NW2
sounds, our model also has some fun features like user-controllable
crew chatter and yard noise. Please continue reading below
for additional details of the model and of the Paragon2 sound and
control system.
Industry-Leading Features:
Product Information:
?
All new Paragon2 sound and control system
? Integral
DC/DCC dual mode decoder for ease of operation
? Industry
best slow-speed operation in DC and DCC
? Prototypical
light operation with headlight, cab light, and rear light
? Authentic
EMD NW2 switcher sounds! Controllable in DC and DCC.
? All-wheel
drive and all-wheel electrical pick-up
? Operating
knuckle couplers
? Factory
installed engineer figure
? Near
brass-caliber detail at a plastic price
? ABS
plastic body with heavy die cast chassis for maximum tractive effort
? Precision
gearing optimized for switching
? 5-pole
can motor with skew wound armature and dual fly wheels
? Locomotive
Length (coupler to coupler): 6.25 inches
? Locomotive
Weight: 9.2 oz
? Separately
Applied Handrails, Ladders, Whistle, and Brass Bell
? Will
Operate on Code 70, 83, and 100 rail
? Recommended
Minimum Radius: 18 inches
Broadway Limited Imports is proud to introduce
Paragon2: The new benchmark for premium HO sound-equipped locomotives.
These DC and DCC-Sound equipped locomotives feature the ALL-NEW
Paragon2 sound and control system. Each Paragon2 locomotive comes with
BLI’s own integral DCC Decoder factory installed. Paragon2
locomotives offer Dual Mode DC and DCC operation with: superb back EMF
motor control in DC and DCC, recordable DCC operation for automated
playback, the same detail level as the original Paragon Series, and the
familiar sturdy maroon box!
Industry-Leading SOUND
Features:
- Operates in DC & DCC (use
DCMaster for DC Sound) - Record & Play Operation
– Records and plays back sounds and movements once or repeatedly for
automatic operation
16-bit Sample Rate for exceptional high frequency sound
clarity- Choice of 3 selectable Horns
- Alternate Whistle / Horn
where applicable for locomotive with air horn and steam whistle – both
the main whistle and alternate can be easily played - Adjustable bell ringing interval
for faster or slower bell - Numerous user-mappable
functions with available keys - Passenger Station Ambient Sounds –
Controlled with Function Key - Freight Yard Ambient Sounds
– Controlled with Function Key - Lumber Yard Ambient Sounds –
Controlled with Function Key - Farm Ambient Sounds –
Controlled with Function Key - Crew Radio Communications –
Controlled with Function Key - Maintenance Yard Ambient Sounds
– Controlled with Function Key - Demo Mode for display and
demonstrations - Grade Crossing
Automatic Signal - Simple Programming with
Integral DCC Decoder - Individually adjustable sound volumes
for each effect - EZ Reset Button for quick
return to factory default settings
**Specifications on this page subject to change.
